Wainlands grille types & specifications

General

1. All grille types can be used for walls, cabinet tops, ceilings, or floors (reinforcement may be needed for floor application).
2. All types can be used for either supply or return.
3. All types can be made to order in any feasable size. There are no "stock" sizes except Wainlands Standard in Stock 15° Bar Grilles.
4. No grilles are made with dampers (operable louvers). It is possible to add this feature onto certain grilles.
5. Amount of open area required depends on HVAC system. Forced air generally requires more than radiant systems.

Perforated

1. Made from sheet material in a single flat metal piece.
2. Available thicknesses are 1/16" and 1/8", but can vary if required.
3. Design shapes are punched or laser cut out to make pattern.
4. Pattern shape proportions are constant. Border sizes vary depending upon the size of grille.
5. Border sizes range from 1/2" on small grilles to 1" on large grilles. These borders decorate and hide the edges of the opening.
6. Typically, grilles are mounted with screws.

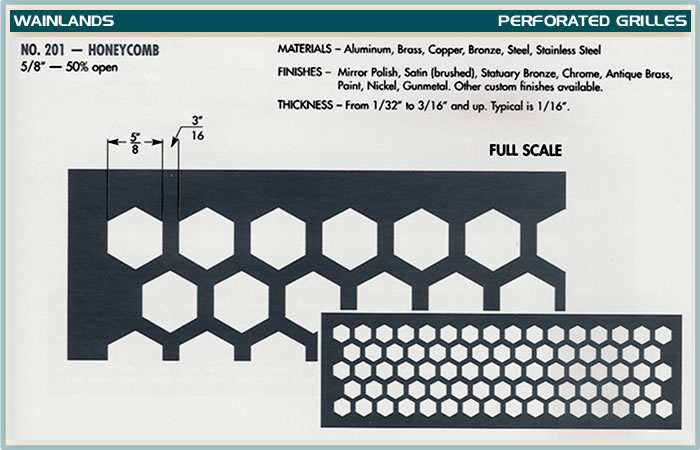

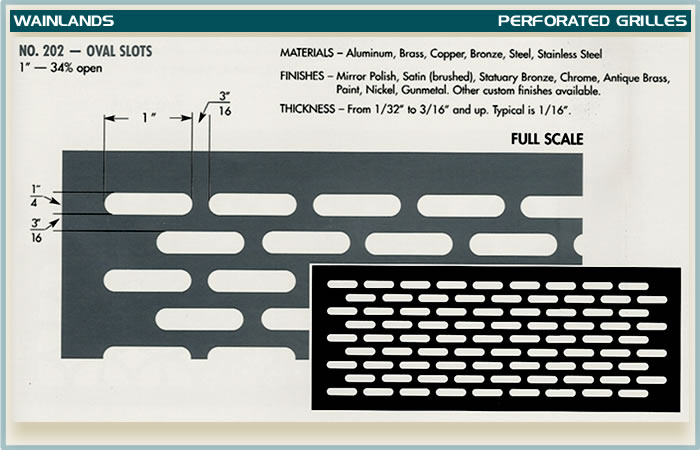

NO. 201 - Honeycomb	NO. 202 - Oval Slots

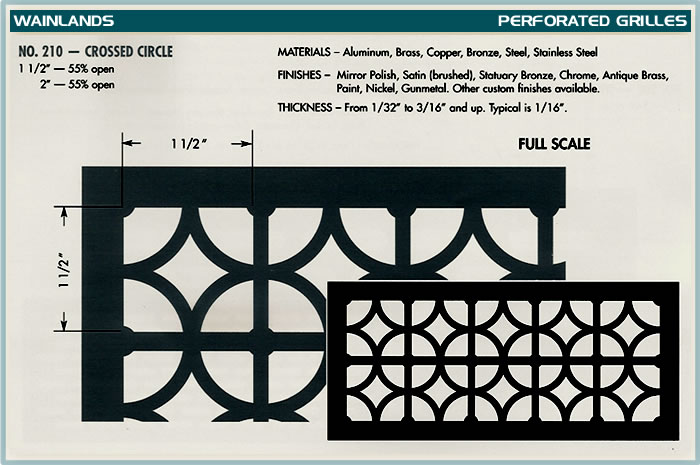

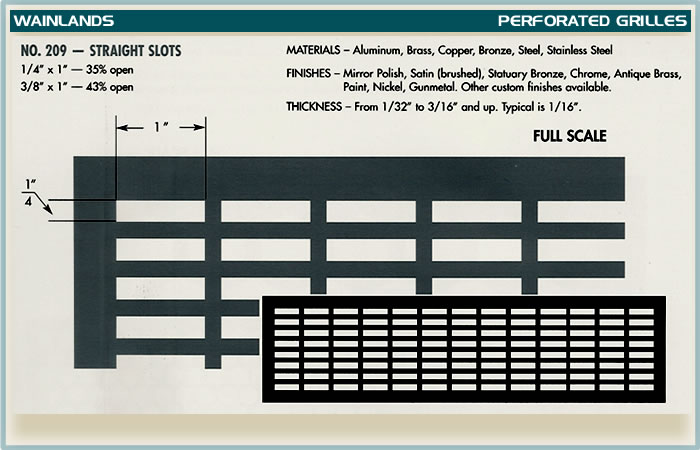

NO. 209 - Straight Slots	NO. 210 - Crossed Circle

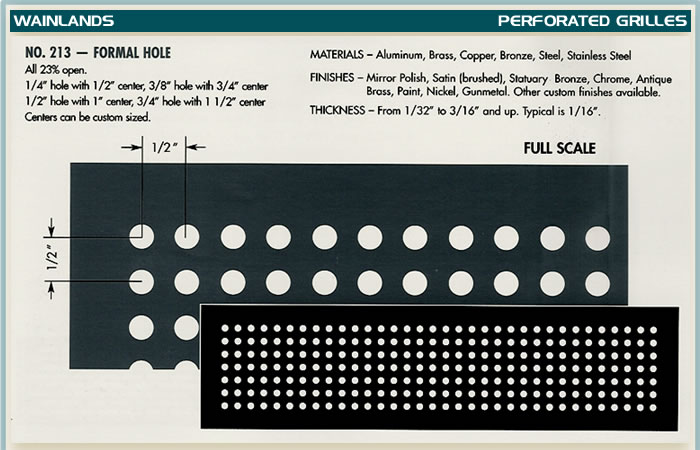

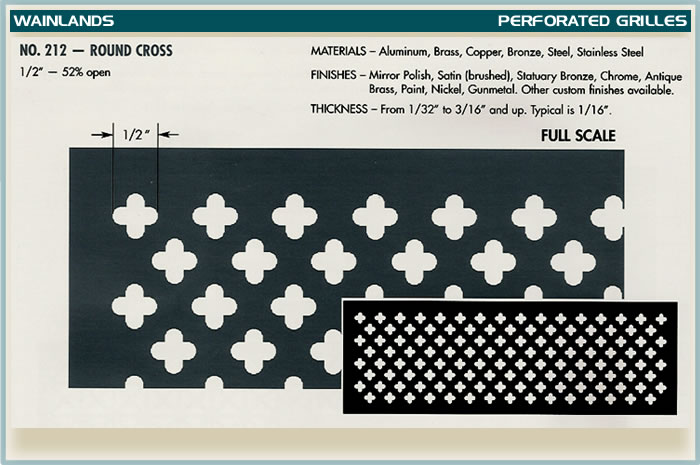

NO. 212 - Round Cross	NO. 213 - Formal Hole

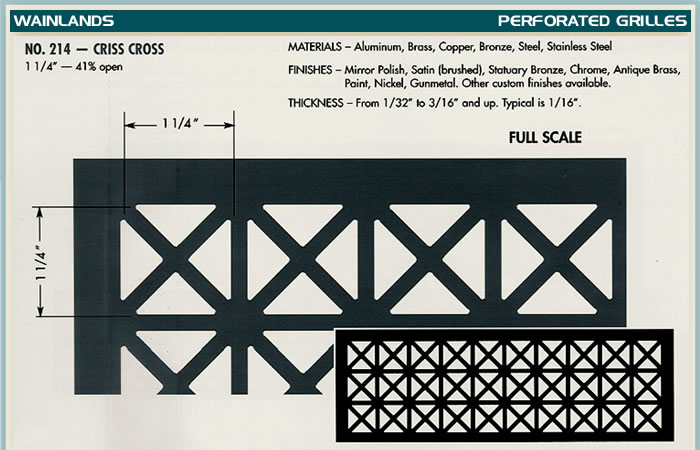

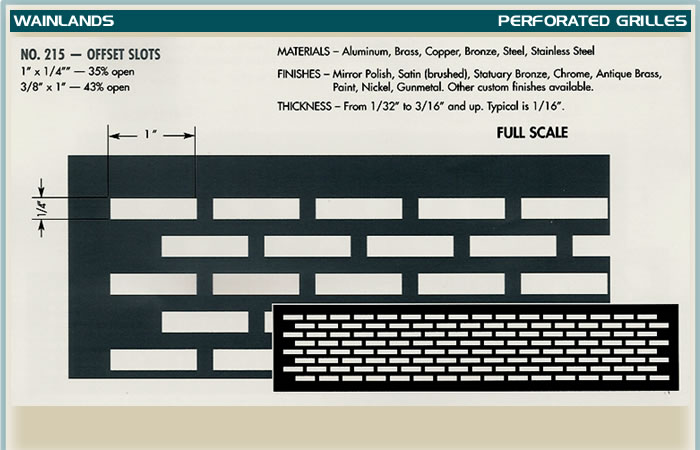

NO. 214 - Criss Cross	NO. 215 - Offset Slots

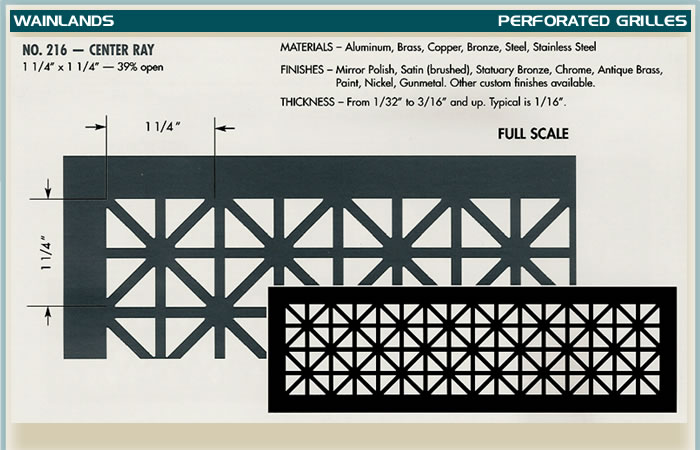

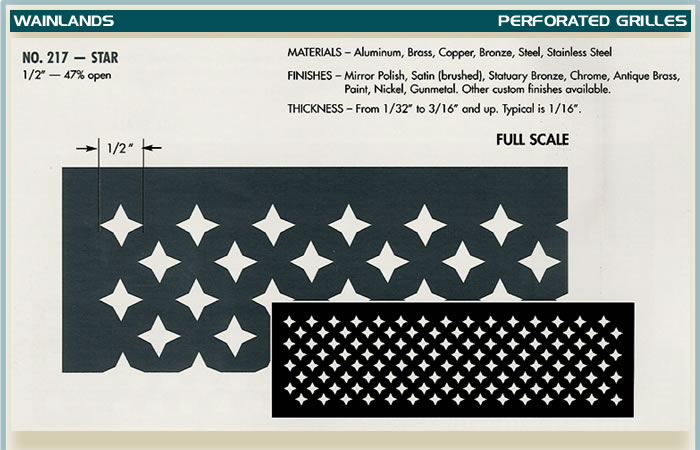

NO. 216 - Center Ray	NO. 217 - Star

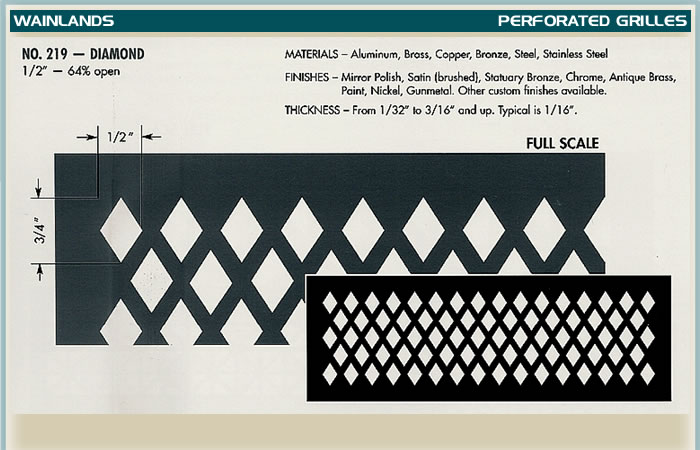

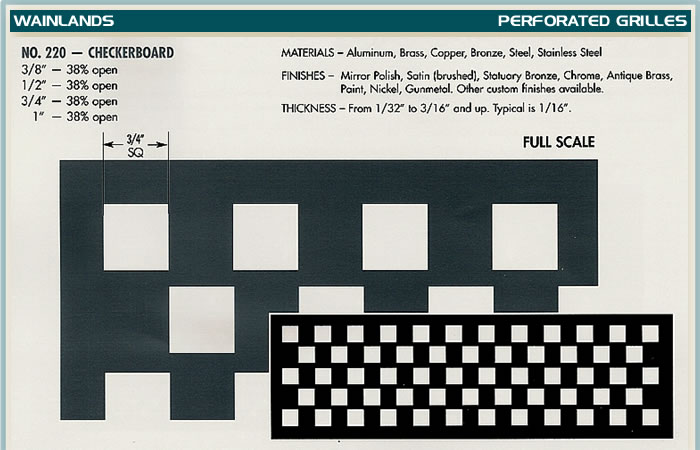

NO. 219 - Diamond	NO. 220 - Checkerboard

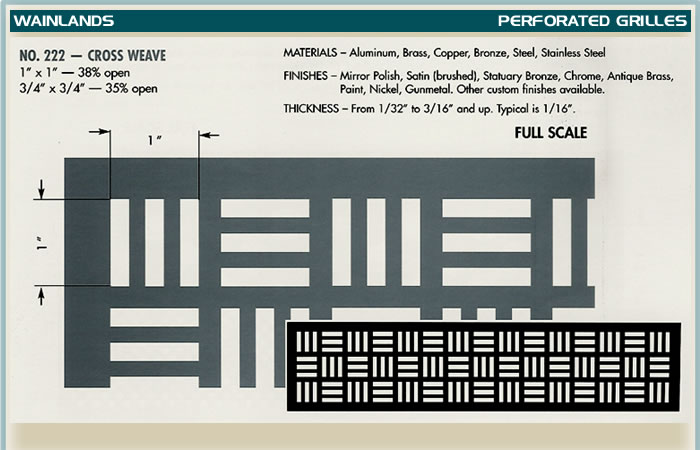

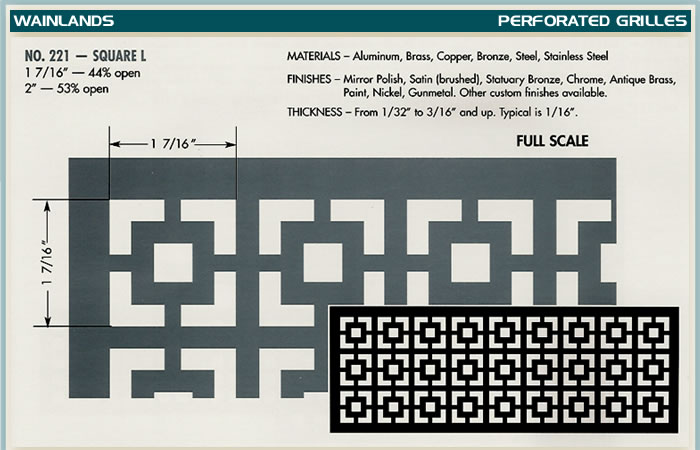

NO. 221 - Square L	NO. 222 - Cross Weave

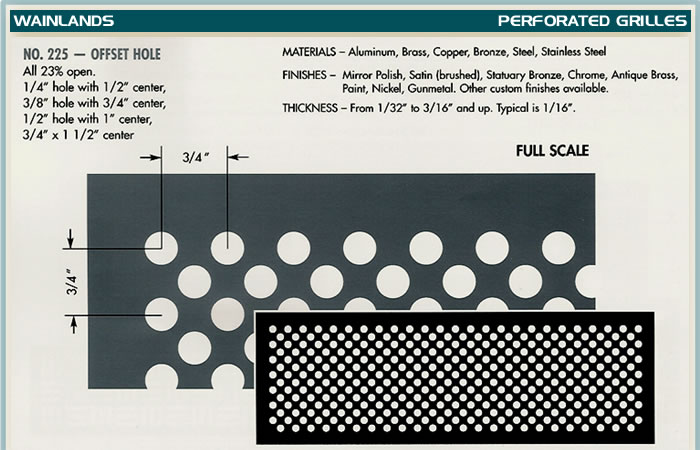

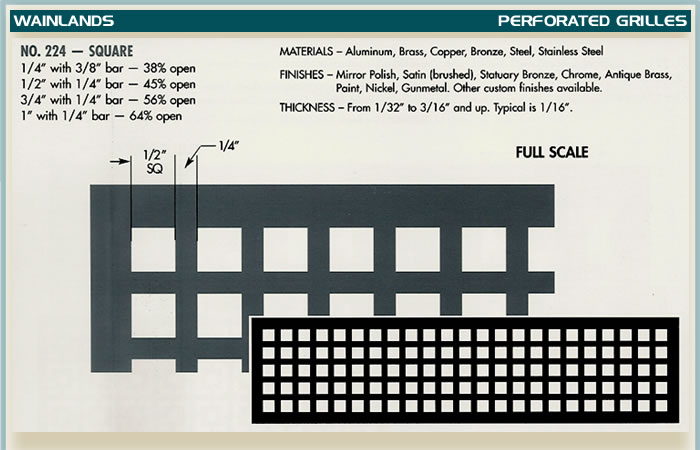

NO. 224 - Square	NO. 225 - Offset Hole

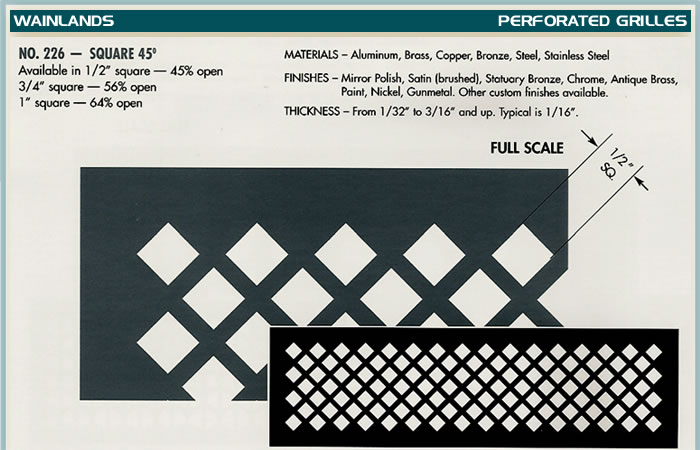

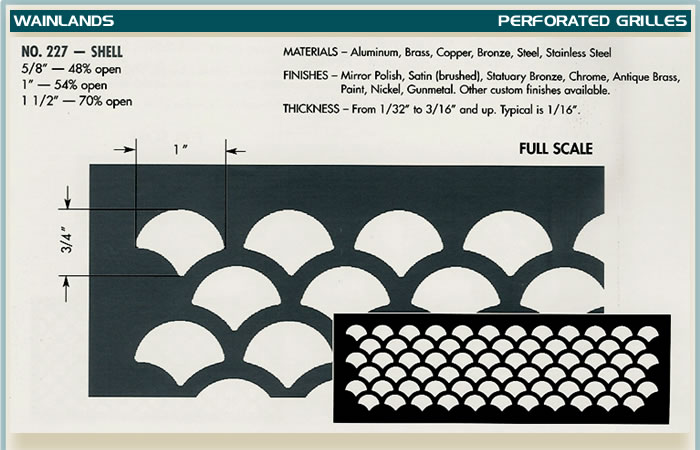

NO. 226 - Square 45°	NO. 227 - Shell

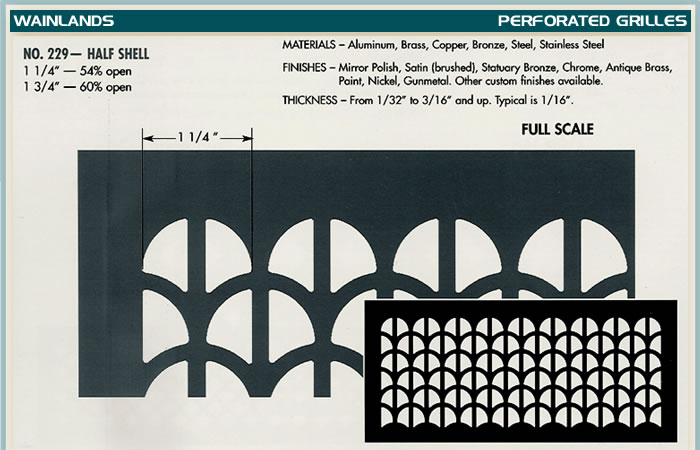

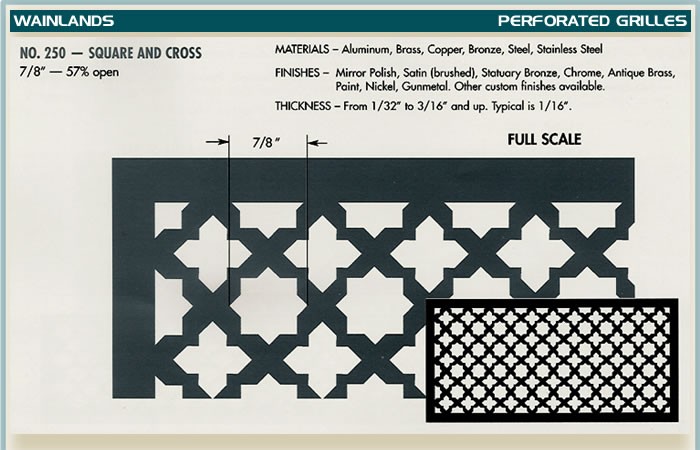

NO. 229 - Half Shell	NO. 250 - Square and Cross

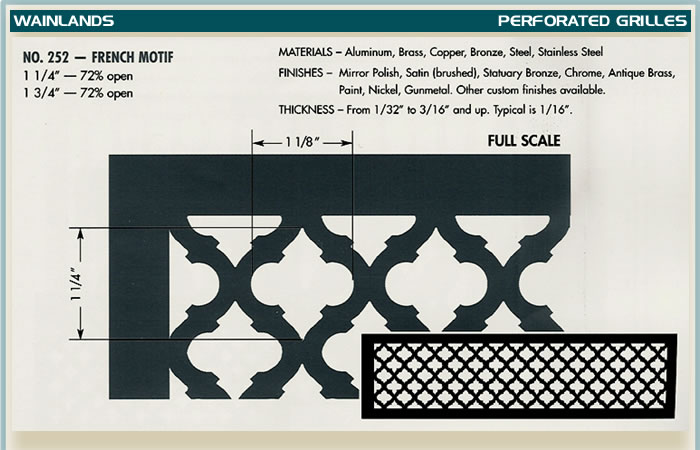

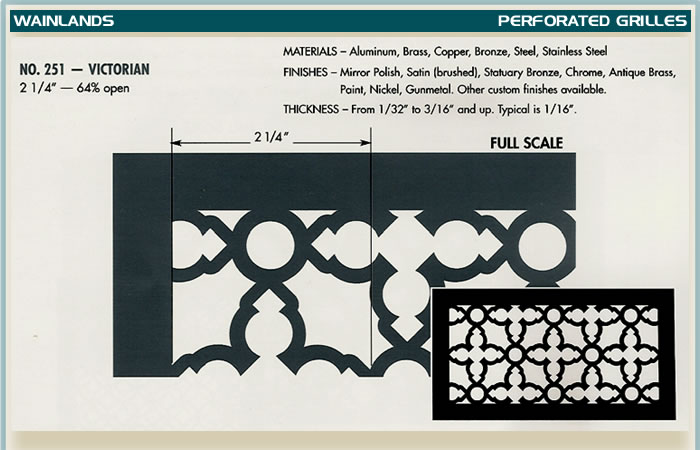

NO. 251 - Victorian	NO. 252 - French Motif

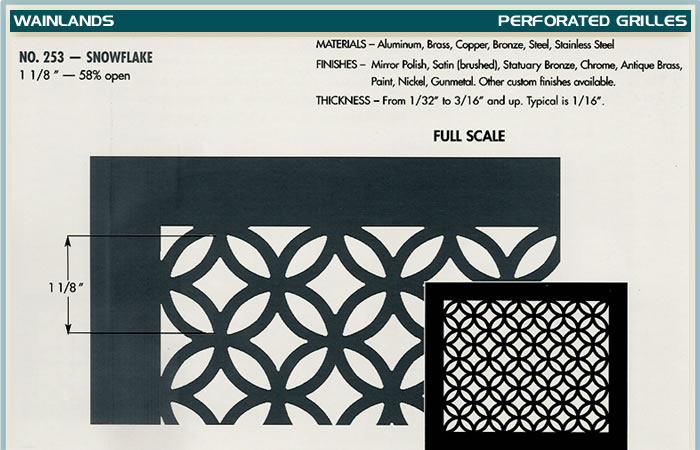

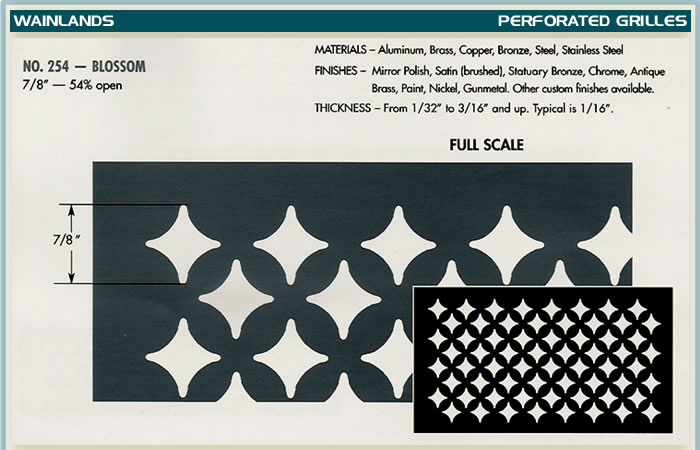

NO. 253 - Snowflake	NO. 254 - Blossom

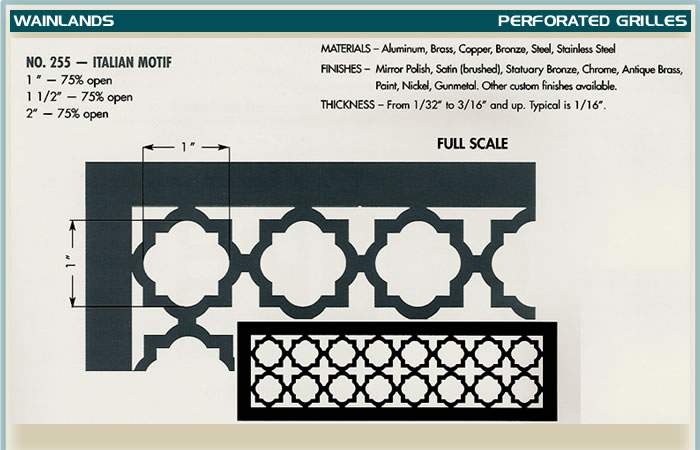

NO. 255 - Italian Motif
